Description
Operating principle
- It is a combination of a solid bow decanter centrifuge and a screen worm centrifuge with exceptional dewatering results.ln the decanteicomponent, the feed suspension is first pre-thickened, i.e. it is extensively dewatered in the conical part of the solid bowl The iquid isclarified in the cylindrical part and finally discharged.
- The pre-thickened solids are transpoted into the cylindrical screen section by the worm where additional dewatering is achieved
- This centrifuge is particularly applicable for the solid-iquid separation in chemical pharmaceutical and other industries. It features largeprocessing capacity and low moisture rate of solid content.Especially for conditions that mother liquid with low solid concentration ormother liquid with small amount of oil substance with better effect.

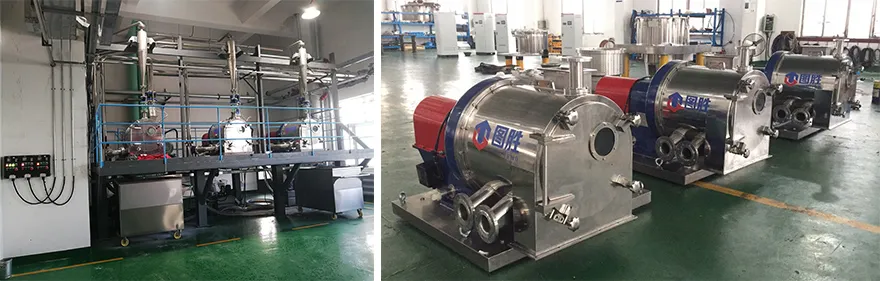

Requirement

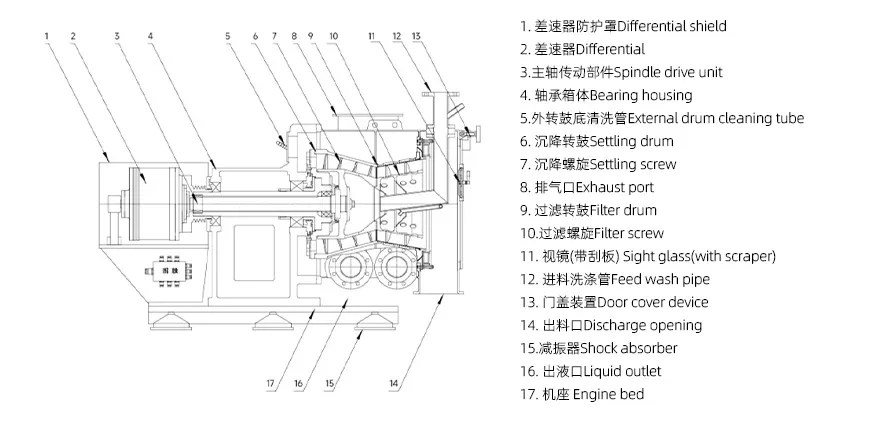

Main structure
Technical parameters
| Models | Bowl Diameter（mm） | Bowl Speed（r/min） | G-force | Productivity（m³/h） | Main Motor Power（kw） | Weight | Dimension(L*W*H)(mm) |
| LLWZ450 | 450 | 2500 | 1574 | 2-6 | 30 | 2500 | 1750*1400*1450 |
| LLWZ650 | 650 | 1600 | 931 | 3-8 | 55 | 4000 | 2600*1700*1950 |
| LLWZ900 | 900 | 1200 | 725 | 5-15 | 90 | 9000 | 2900*2150*2350 |
